The drum washing machine is widely used in the pre-cleaning and screening work of ore materials containing impurities, large amounts of mud, and high cleaning requirements. It can also be used for mixing, washing, separating, and desliming of minerals. It is widely used in many sand and gravel production lines for cleaning of ore materials.

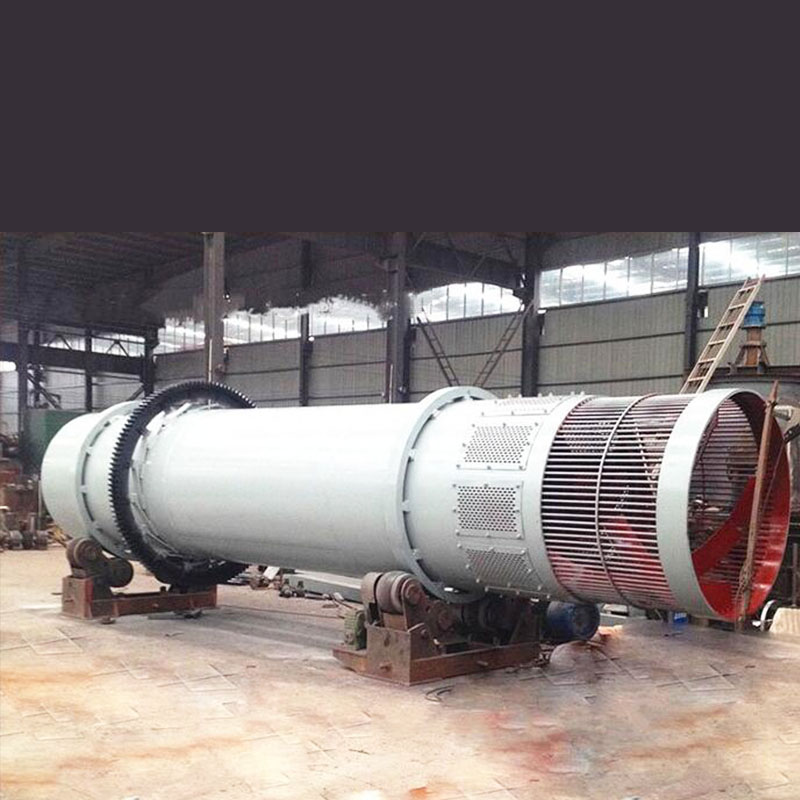

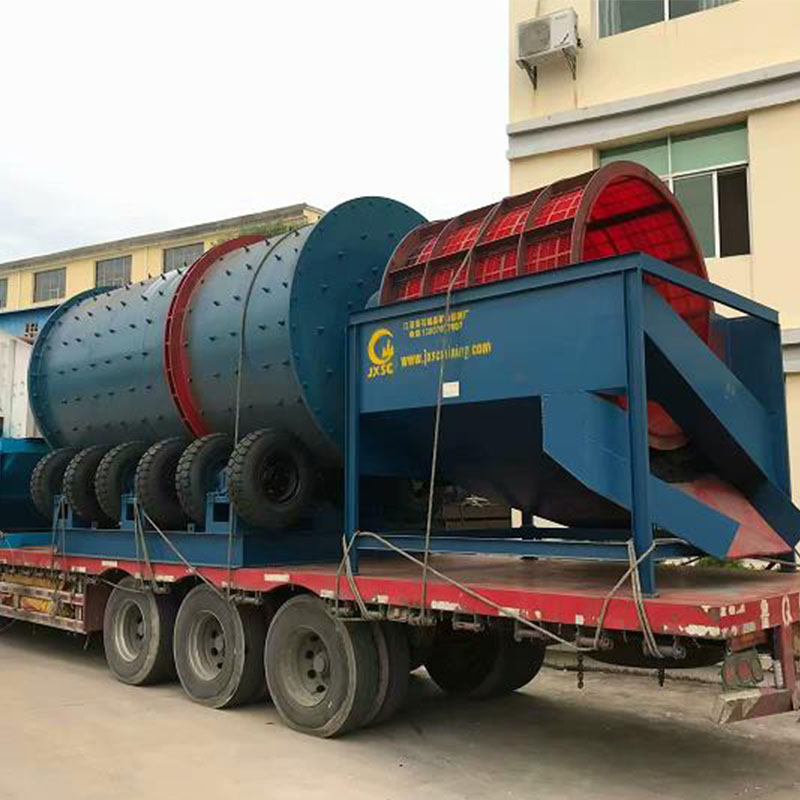

The drum washing machine is mainly composed of an ore washing cylinder and a double-layer drum screen connected to the end of the cylinder. The front section has no holes for soaking and breaking ore, and the rear section has holes for mud and rock separation. The cylinder is horizontally supported on two steel rings by 4 rollers and is rotated by the pinion gear through the ring gear located in the middle of the cylinder. A liner with ribs is installed on the inner wall of the cylinder, and the liner is arranged in a helical line, and the pitch increases toward one end of the trommel screen, which is used to stir and push the material out.

Model	Barrel Diameter	Cylinder Speed	Feed Size	Yield	Power	Weight
Unit	(mm)	(rev/min)	(mm)	(t/h)	(kW)	(kg)
GTX-1545	1500×4500	21	160	100	30	9.2
GTX-1845	1800×4500	19	200	200	37	16
GTX-2145	2100×4500	19	200	300	45	23

1. Large processing capacity and strong washing ability.
The use cost of the drum washing machine is low, and the processing capacity of a single machine can reach 200 tons per hour.
  The mud content of the washed minerals is less than 0.5%, and the water content is less than 2%. The impeller drive bearing device is greatly isolated from water and water-receiving materials.
  It avoids the occurrence of bearing damage caused by water immersion, sand, and pollutants.
2. High efficiency of ore washing, finished product particle size classification.
The ore is fully soaked in the front end of the drum washing machine, and the separation of ore and mud is realized at the back end.
  The whole set of equipment has a remarkable water-saving effect, and the ore-washing efficiency is as high as 98%.
  The single-layer or double-layer circular screen in the drum can obtain two, Sand and stone products of three different specifications.
3. High-quality components, long service life.
The barrel adopts thickened steel plate, heavy-duty gears, and supporting wheels.
  Except for the finished material stacking belt conveyor, all systems are integrated into an overall frame, which not only ensures the integrity of the equipment but also leaves a moderate space for maintenance and inspection long-lasting.
